EV Charging & Wireless Metering
Charge the car
from your own roof
Type 2 chargers at 11 kW and 22 kW, and a meter that reports to your Deye hybrid wirelessly — with no data cable to run.
— Smart EV Charger
Two chargers,
11 kW or 22 kW

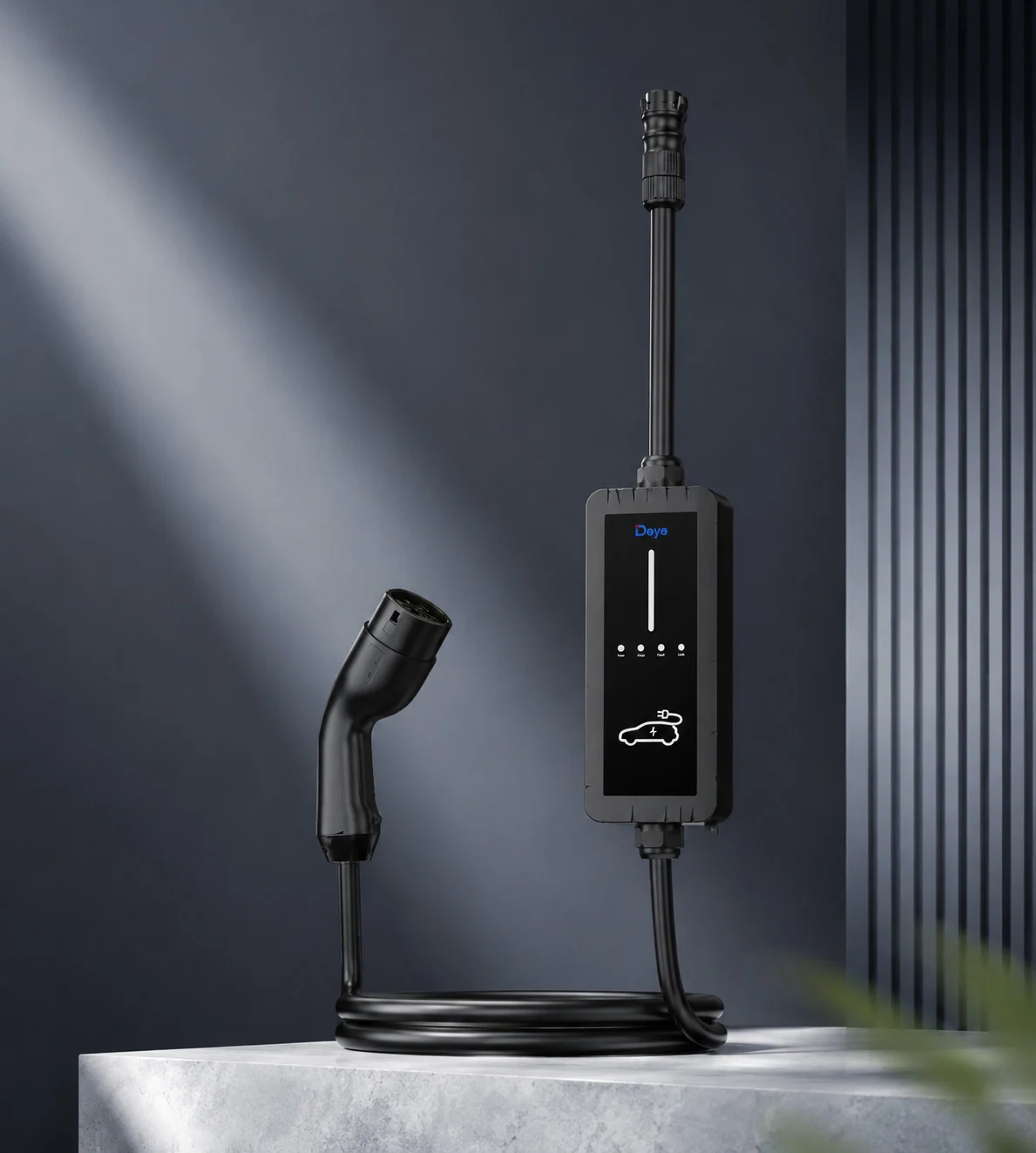

SUN-EVSE11K01-AC charges at 11 kW on three phases or 3.5 kW on a single-phase supply, 16 A. SUN-EVSE22K01-AC charges at 22 kW on three phases or 7 kW on single-phase, 32 A. Deye’s Australian datasheet lists RCM among the safety and EMC standards for both.
11 / 22 kW
Three-phase (11K / 22K)
3.5 / 7 kW
Single-phase (11K / 22K)
16 / 32 A
Rated current (11K / 22K)
IP66
Outdoor rated
4.2 m
Type 2 gun
6 mA
DC fault detection
Plug & Play
Scheduled Charging
Type II Surge
Wireless · Wi-Fi · Bluetooth
— Working with a Deye hybrid
The inverter decides
when the car charges
Plug & Play, a charging window, or solar only — set from the inverter screen or Deye Cloud. Charger and inverter talk over a wireless link of their own: a 920–928 MHz LoRa radio, not your Wi-Fi, so it holds when the internet drops.
Solar-Only Charging
Works Without Internet
Or Standalone, No Inverter
— Wireless meter
Wireless metering.
No cable to run.

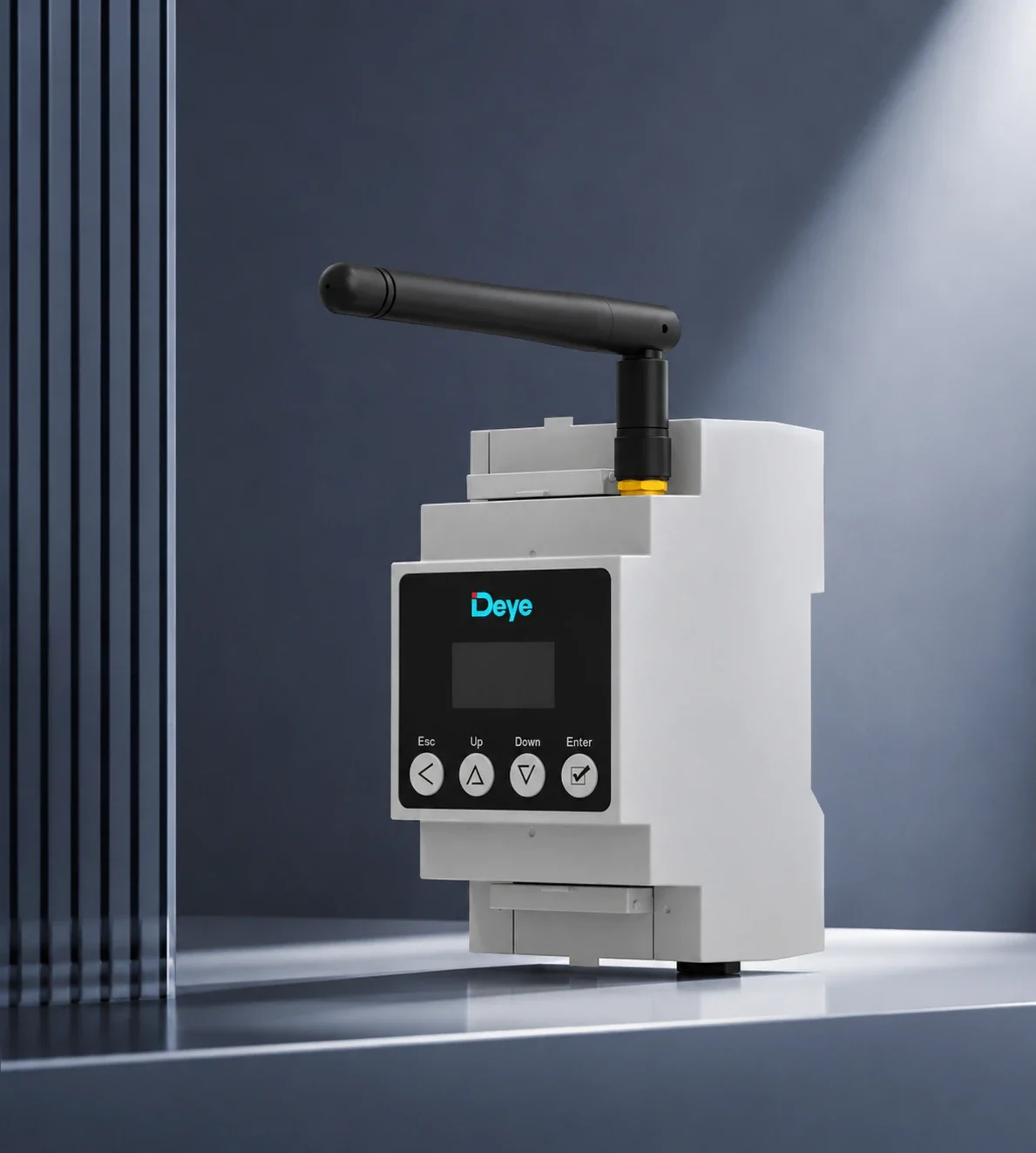

The SUN-SMART-CTU2-L clips onto the DIN rail in the switchboard and sends its readings through the air to the inverter — nothing to drill, no comms cable back through the wall. It runs on its own 920–928 MHz radio, not your Wi-Fi. Deye states 0.2 s zero-export response for it, against a typical 3–5 s for a Wi-Fi meter. Deye’s Australian datasheet lists RCM among its certification standards.
Wireless
920–928 MHz (LoRa)
≈ 200 m
Barrier-free range
100 ms
Data upload
1 / 2 / 3 ph
Single, split, three
≤ 2 W
Self consumption
5 yr
Warranty
Bidirectional Metering
Wireless Or RS485
On-Unit LCD
— Documentation
Datasheets and manuals
Model-by-model specifications are on the Technical Hub: EV chargers · Smart TX & Wireless CT. Also from Deye (AU, Aug 2026): Smart EV Charger datasheet · PDF 0.3 MB ↓ · Wireless Energy Management brochure · PDF 7.1 MB ↓. The user manual’s technical data lists the SUN-EVSE11K01-AC for three-phase only; for its single-phase 3.5 kW rating, use the Aug-2026 datasheet.
— Get Started
Adding EV charging
to a Deye system?
Talk to our team about Smart TX compatibility, wireless metering, and technical support for your next EV charging project.
