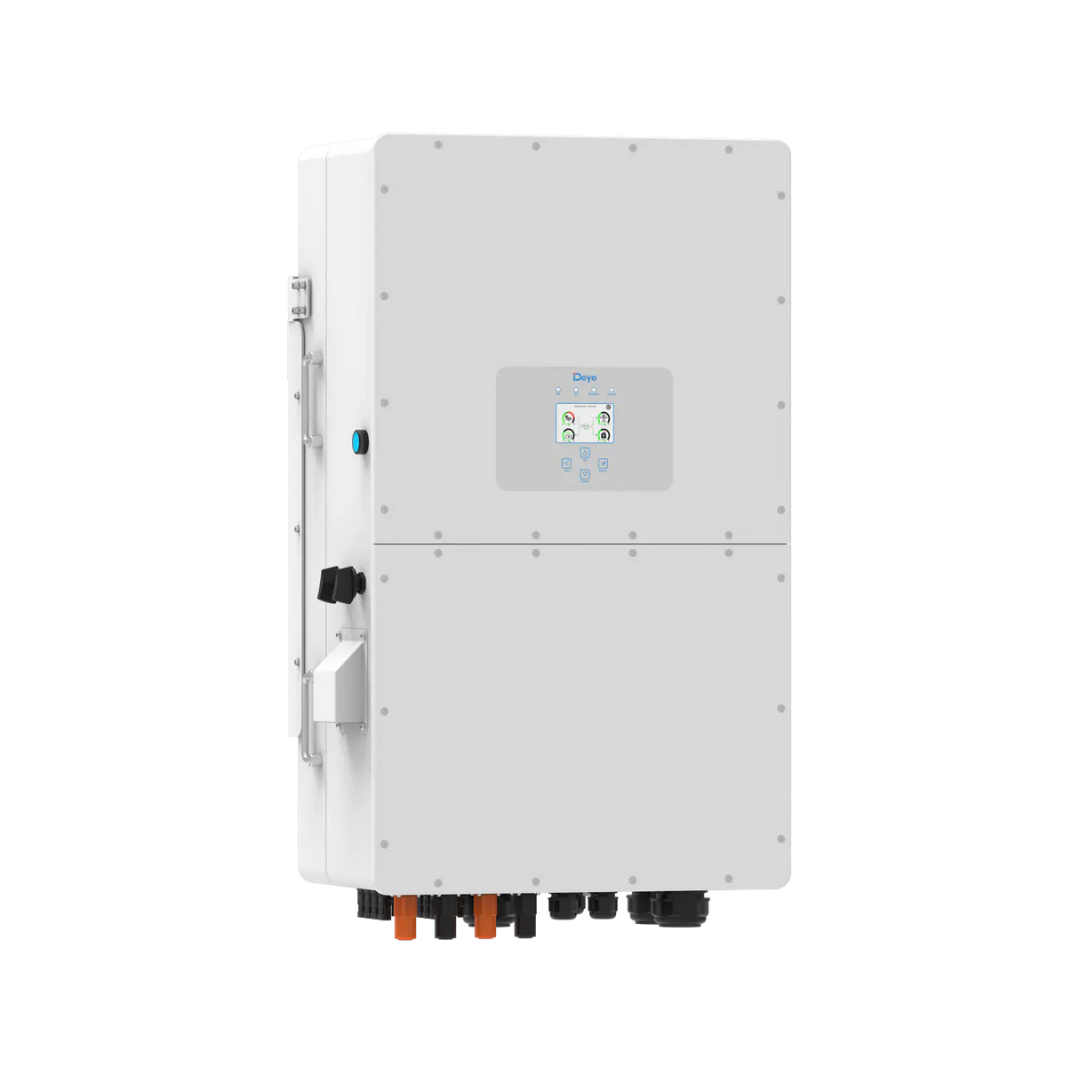

Powerful 40 kW inverter for high-demand commercial sites, offering multiple MPPT strings, HV battery support, and deep-functional energy management.

• AC Output: 40 kW rated with 100% unbalanced output; AC passthrough up to 200 A; peak output for off-grid up to 1.5× rated power for 10s

• PV Input: ~52 kW DC capacity; PV voltage up to 1000 V; MPPT tracks 3–4 strings depending on model; MPPT voltage range 150–850 V

• Battery Input: High-voltage battery support (160–800 V); max charging/discharging current 100 A per input; self-adaptive BMS strategy

• Operational Versatility: Support for AC coupling retrofits, generator backup, smart load scheduling, and remote shutdown/firmware update capability via monitoring platform

• Parallel & Redundancy: Supports up to 10 units in parallel for large-scale or off-grid configurations, multi-battery integration supported

• Robust Design & Standards: IP65 rated, intelligent cooling ≤ 65 dB, −40 to +60 °C operation, IEC/AS/NZS compliance, surge protection, RCD, anti-islanding, residual current detection, THDi <3%
