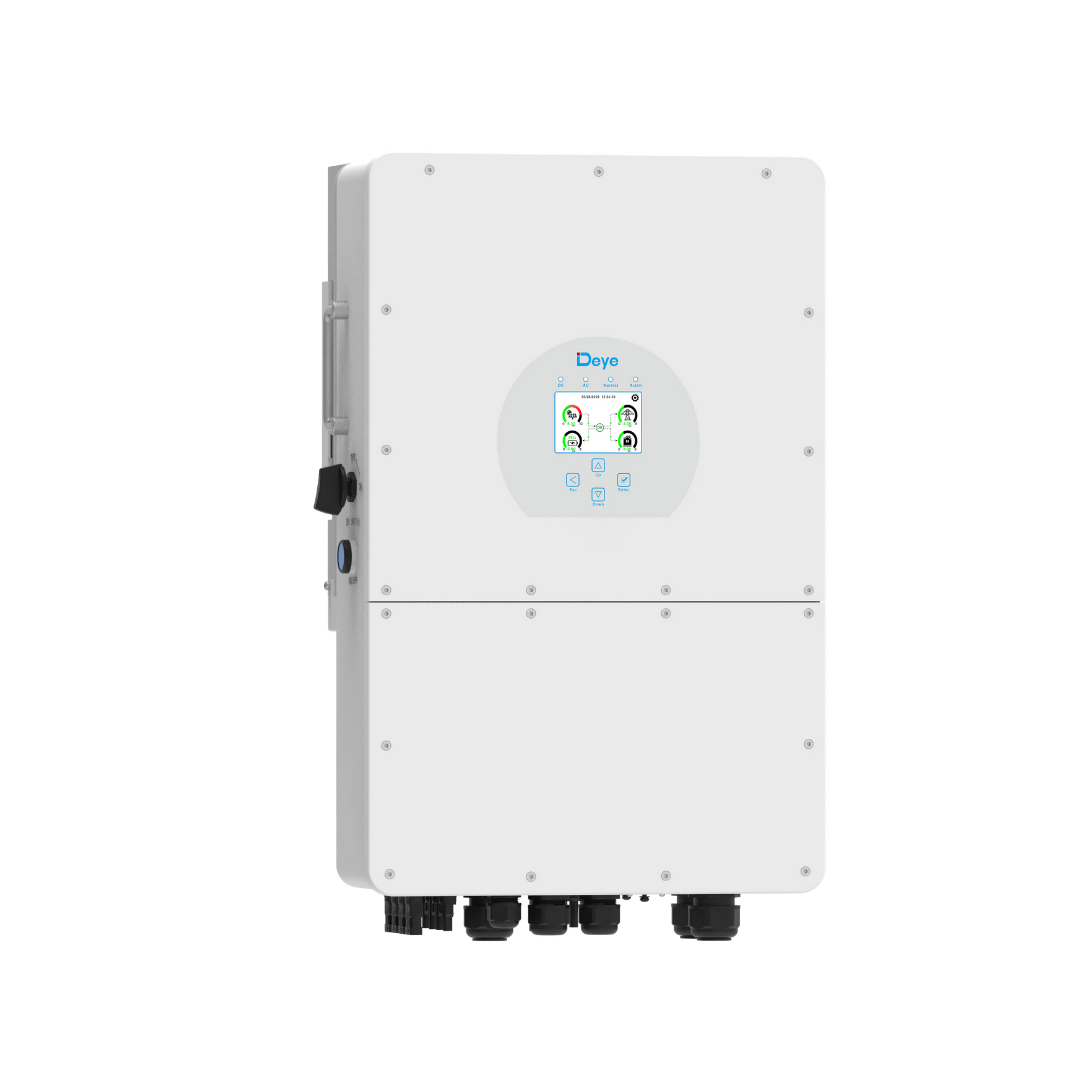

High-performance 25 kW three-phase hybrid inverter designed for Australian C&I solar-plus-storage installations. Built to support flexible high-voltage battery systems and robust solar generation needs.

• Rated AC Output: 25 kW (3L‑N‑PE), supports full unbalanced output per phase

• PV Input: Up to ~37.5 kW DC over dual MPPTs; 700 V max PV voltage; MPPT range 150–850 V; start‑up around 180 V

• Battery Compatibility: Supports high-voltage batteries (160–700 V), max charge/discharge 50 A per input; BMS self-adaptation

• Operational Modes: Grid-tied, off‑grid, backup, AC‑coupling retrofit, diesel generator integration, smart load scheduling with up to 6 configurable periods

• Scalable & Modular: Parallel up to 16 units; supports multiple batteries in parallel and AC coupling setups

• Safety and Compliance: IP65, intelligent air cooling, -40 °C to +60 °C rated, noise ≤ 65 dB; meets IEC, AS/NZS, EMC, anti-islanding, surge, arc-fault protections
